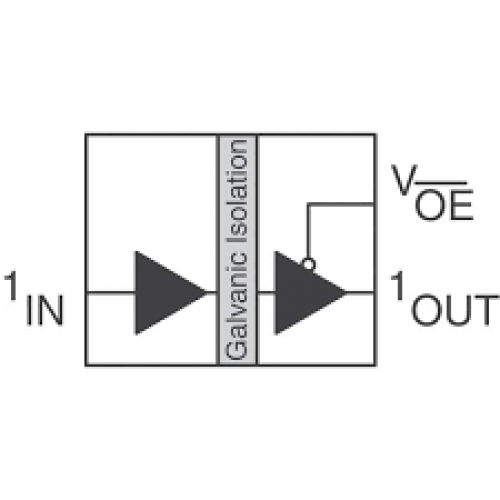

NVE’s IL700 family of high-speed digital isolators are CMOS devices manufactured with NVE’s patented* spintronic Giant Magnetoresistive (GMR) technology.
A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life.
The symmetric magnetic coupling barrier provides a typical propagation delay of only 10 ns and a pulse width distortion as low as 300 ps (0.3 ns), achieving the best specifications of any isolator. Minimum transient immunity of 100 kV/µs is unsurpassed.The IL710 is ideal for isolating applications such as PROFIBUS, RS-485, and RS-422.
The IL710 is available in 8-pin MSOP, SOIC, and PDIP packages.
The IL710S is the world’s fastest isolator of its type, with a 150 Mbps typical data rate. Standard and S-Grade parts are specified over a temperature range of −40°C to +100°C. T-Grade parts are specified over a temperature range of −40°C to +125°C. The MSOP V-Series version offers full 2500 VRMS isolation in an ultraminiature package.
| Technical | |
| Applications | • Digital Fieldbus • RS-485 and RS-422 • Ground loop elimination • Peripheral interfaces • Serial communication • Logic level shifting • Equipment covered under IEC 61010-1 Edition 3 • 5 kVRMS rated IEC 60601-1 medical applications |
| Features | • High Speed: 150 Mbps typical (IL710S) • 2500 VRMS isolation voltage • 100 kV/μs common mode transient immunity • No carrier or clock for low EMI emissions and susceptibility • Extended 2.7 to 5.5 volt supply range • 1.2 mA/channel typical quiescent current • 300 ps typical pulse width distortion (IL710S) • 100 ps pulse jitter • 2 ns channel-to-channel skew • 10 ns typical propagation delay • 44000 year barrier life • Excellent magnetic immunity • IEC 60747-17 (VDE 0884-17):2021-10 certified; UL 1577 recognized • 500 VRMS IS-to-IS intrinsically safe • 8-pin MSOP, SOIC, and PDIP packages |
